Reducing UPS Battery Risk Through Continuous Condition Monitoring
Battery systems are one of the most critical but often underestimated parts of data center power infrastructure. UPS systems are expected to provide immediate backup during power disturbances, but the actual reliability of the backup chain depends heavily on the condition of the batteries.
A weak battery, a loose connection, a temperature problem, or an abnormal internal resistance trend can reduce the reliability of the entire battery string. For this reason, data center battery monitoring should not be limited to periodic manual checks.
What this whitepaper covers
- Hidden risks in data center UPS battery systems
- Why periodic manual battery testing is not enough
- Key battery parameters that should be monitored continuously
- Cell-level monitoring compared with string-level monitoring
- Integration with data center monitoring systems through Modbus and SNMP
- Practical battery monitoring architecture for critical power applications
- A checklist for selecting a data center battery monitoring solution
1. Introduction
Data centers rely on UPS systems to provide immediate backup power during utility failures, power disturbances, and critical transfer events. However, the UPS battery system is often one of the least visible parts of the critical power chain.
While UPS equipment can report system-level conditions, individual battery degradation may remain hidden unless the battery system is monitored at cell or battery level. A single weak battery can affect the reliability of the complete string.
Continuous battery monitoring provides the visibility required to identify abnormal behavior, track condition trends, and support more reliable maintenance decisions.

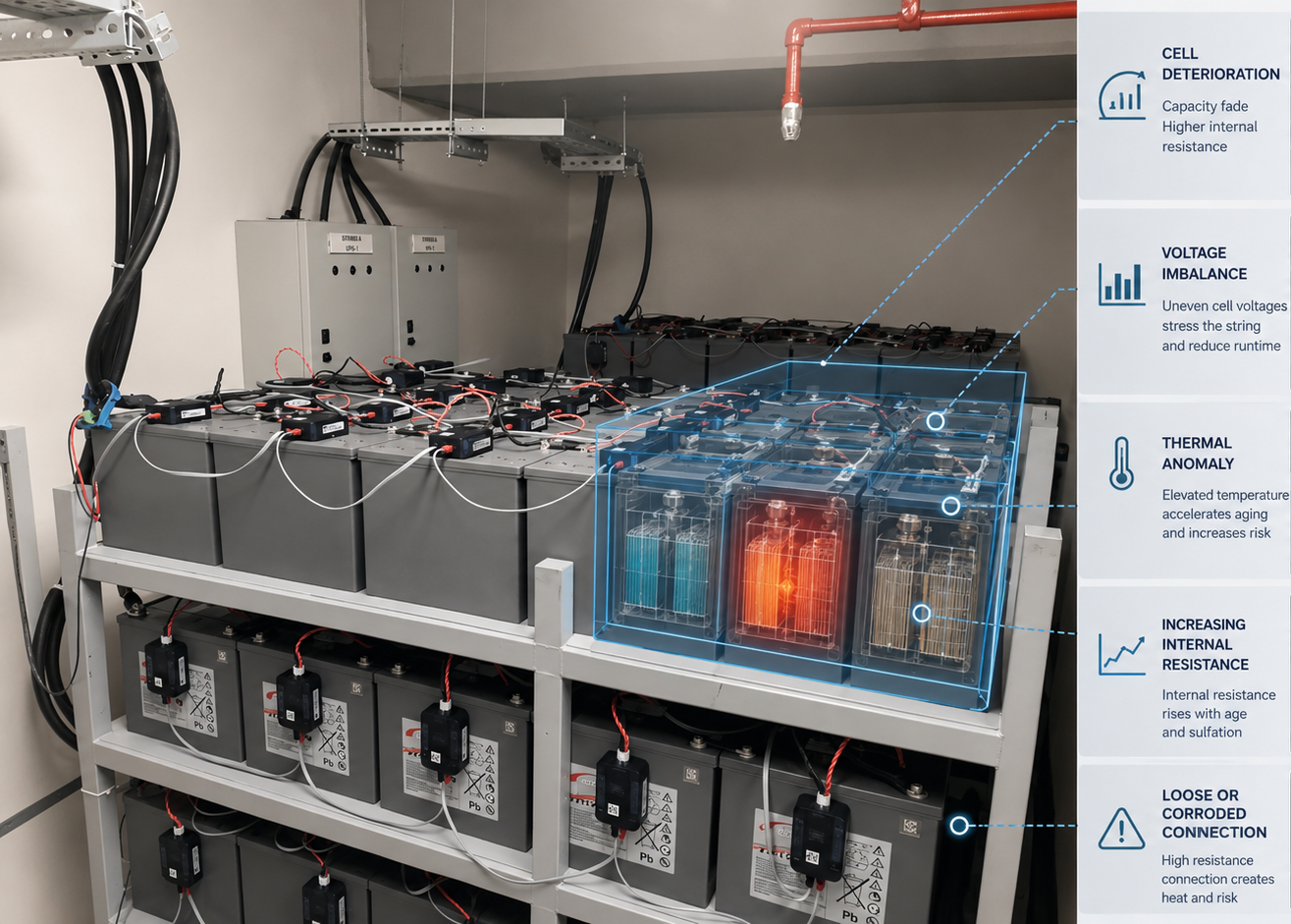

2. The Hidden Risk in UPS Battery Systems
UPS battery systems usually remain in standby mode for long periods. This can create a false sense of security. Since the system is not continuously discharged under real operating conditions, individual battery degradation may remain hidden.
String voltage can remain within expected limits while a specific battery develops internal problems. These problems may become visible only during discharge, when the battery system is already expected to support the load.
Common risks include:
- Individual battery deterioration
- Internal resistance increase
- Voltage imbalance
- Thermal anomaly
- Connection-related problems
- Environmental stress in the battery room
- Lack of historical condition data
These risks may not be visible from string-level voltage alone.

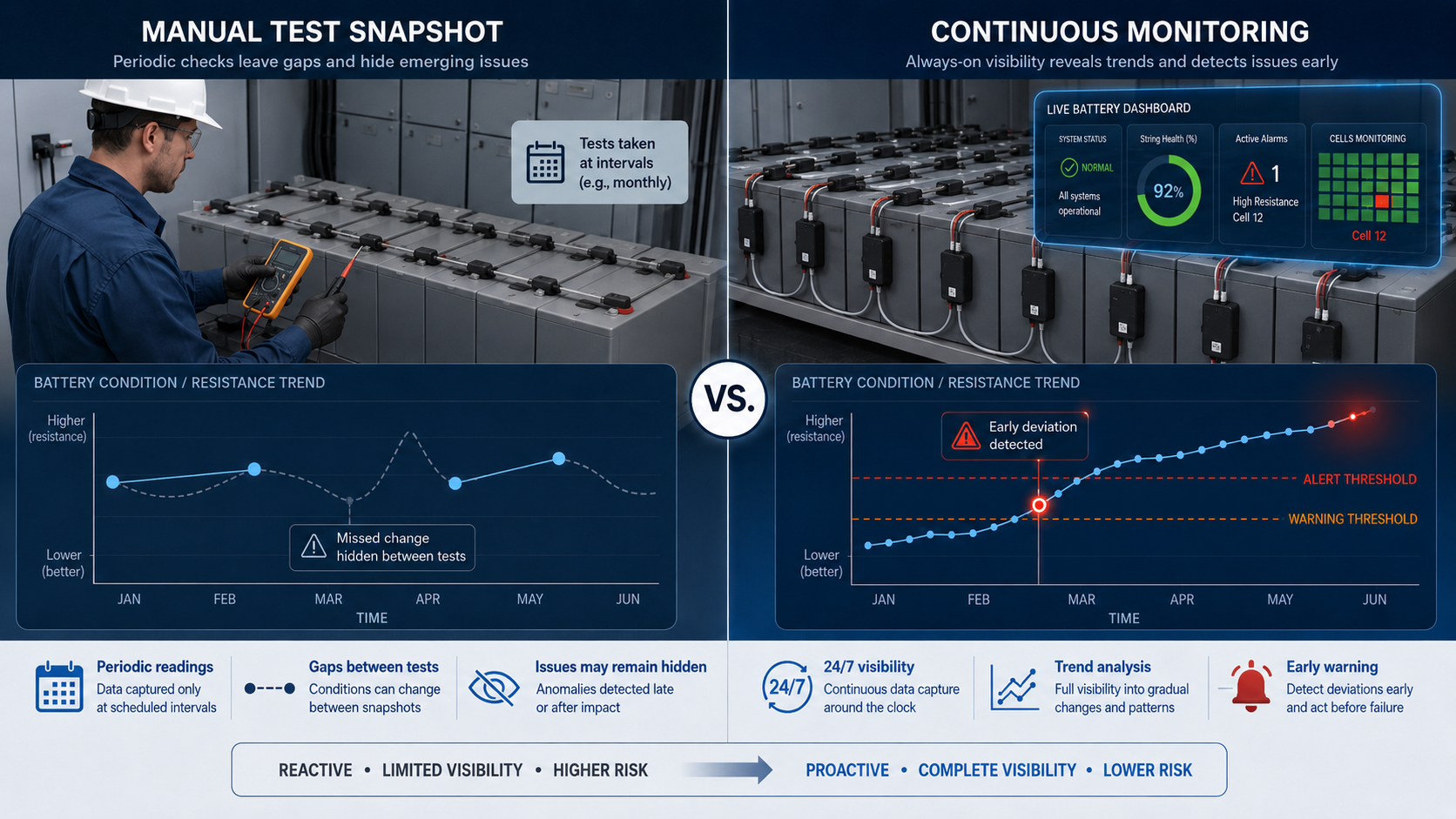

3. Why Manual Testing Is Not Enough
Manual battery testing gives a snapshot of the battery condition at a specific moment. However, battery problems can develop between maintenance periods.
A battery that appears acceptable during a scheduled inspection may start showing abnormal voltage, resistance, or temperature behavior later. Without continuous monitoring, these changes may remain unnoticed until the next maintenance visit or an actual discharge event.
Manual inspection may also be affected by:
- Limited test frequency
- Human error
- Inconsistent measurement conditions
- Lack of trend data
- Difficulty in monitoring large battery rooms
- Limited visibility across multiple data center sites
Continuous monitoring provides a more structured and reliable view of battery condition by collecting data regularly and allowing operators to evaluate trends over time.

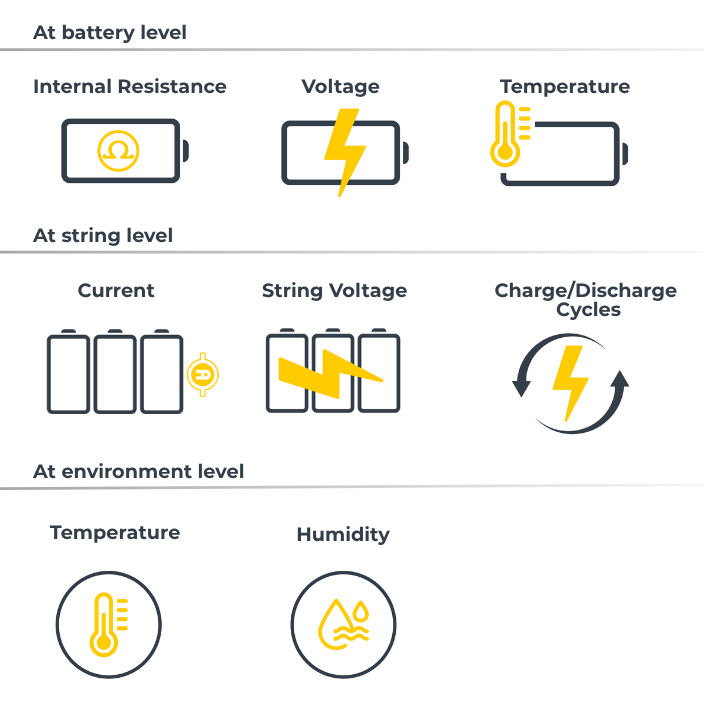

4. Key Parameters to Monitor
An effective data center battery monitoring solution should provide visibility at both battery and string level. The objective is not only to collect values, but to understand whether the battery system is operating within expected limits.
Important parameters include:
- Cell or battery voltage
- Internal resistance
- Battery temperature
- String voltage
- String current
- Ambient temperature and humidity
- Alarm history
- Charge and discharge records
Together, these parameters help operators evaluate individual battery condition, complete string performance, and the environmental conditions affecting the battery system.

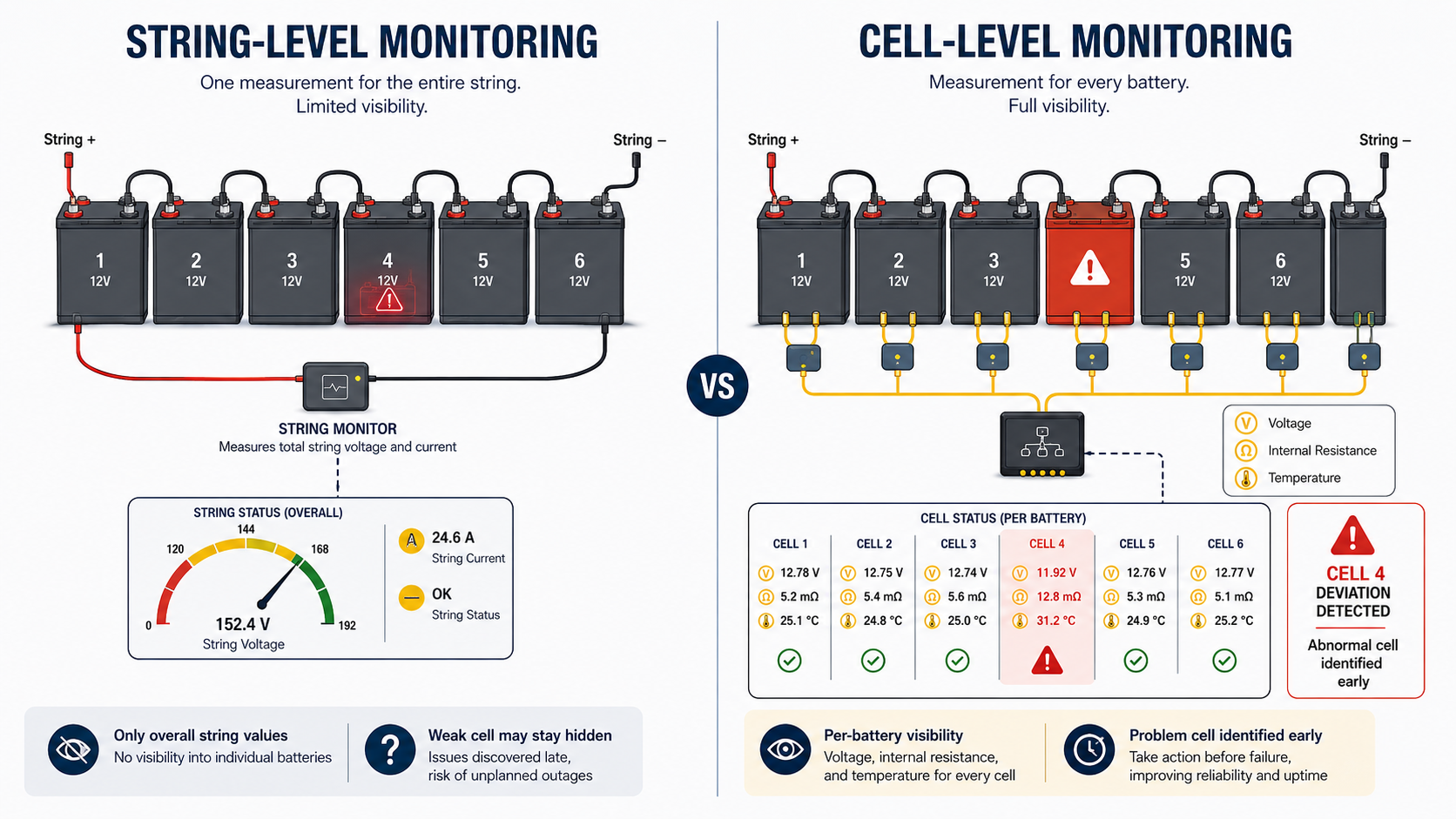

5. Cell-Level Monitoring vs. String-Level Monitoring
String-level monitoring alone can show whether the total DC voltage is within range, but it cannot always identify a weak individual battery.
For example, a complete string voltage may look normal while one battery is weaker than the others and another battery is operating at a higher voltage. Without cell-level data, this imbalance may remain hidden.
Cell-level monitoring helps detect abnormal behavior earlier by showing differences between batteries in the same string. This is especially important in data center UPS systems where one weak battery may affect the reliability of the complete backup chain.
Cell-level monitoring supports:
- Early weak battery identification
- Voltage imbalance detection
- Internal resistance trend observation
- Temperature anomaly detection
- Better replacement planning

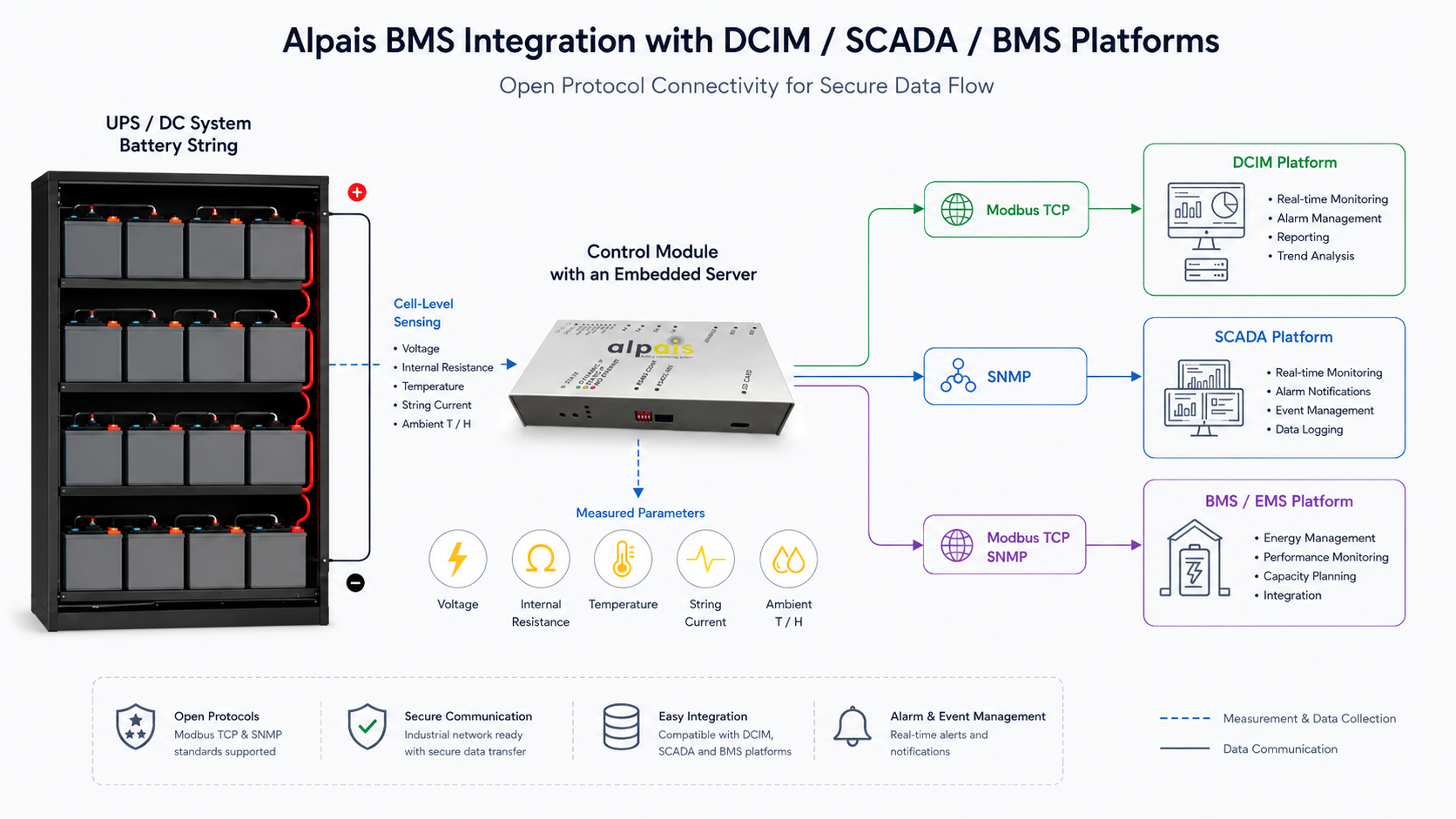

6. Integration with Existing Data Center Systems
Battery monitoring data should be accessible to technical teams and, when required, transferable to existing monitoring platforms.
Communication options such as Modbus and SNMP allow battery alarms and measurement data to be integrated into facility monitoring, DCIM, SCADA, or other management systems depending on the project architecture.
This is important for data centers where power infrastructure, environmental monitoring, alarms, and operational dashboards are often managed through centralized platforms.
Typical integration targets include:
- Data center monitoring platforms
- DCIM systems
- Building or facility management systems
- SCADA systems
- Remote monitoring dashboards
- Alarm management platforms
7. Practical Battery Monitoring Architecture
A practical battery monitoring architecture should provide measurement at battery level, data collection at string level, and central access through a software or control interface.
A typical battery monitoring architecture includes:
- Battery modules for individual battery measurements
- String modules for string-level data
- Control module or software platform for data collection
- Communication interface for local or remote monitoring
- Alarm outputs and protocol integration
- Optional room monitoring sensors
This structure allows operators to monitor the battery system from individual battery level up to complete site level.
Depending on the project, the architecture can be adapted for a single UPS battery room, multiple strings, or multiple data center locations.
8. Benefits for Data Center Operators
Continuous battery monitoring supports a more structured approach to maintenance, risk reduction, and technical decision-making.
Continuous battery monitoring can support:
- Earlier detection of weak batteries
- Reduced risk of unexpected battery failure
- Better maintenance planning
- Reduced dependency on manual inspection
- Improved visibility across multiple UPS battery strings
- Historical data for technical evaluation
- Integration with existing monitoring systems
For data center operators, the main value is not only detecting a failed battery, but identifying developing risk before it becomes operationally critical.
9. Battery Monitoring Checklist for Data Centers
Before selecting a battery monitoring system, data center teams should evaluate whether the solution provides sufficient visibility, scalability, and integration capability.
Selection checklist:
- Does the system monitor individual batteries?
- Does it measure internal resistance?
- Does it monitor battery temperature?
- Can it monitor string voltage and current?
- Does it support remote access?
- Can it integrate with existing systems through Modbus or SNMP?
- Can it support the required number of batteries and strings?
- Does it provide alarm history and trend records?
- Is the system suitable for the battery type used on site?
- Can it be adapted to existing UPS battery rooms?
These questions help clarify whether the monitoring system is suitable for the operational requirements of a data center UPS battery installation.
10. Conclusion
UPS battery systems are essential for data center uptime, but their condition cannot be fully understood through occasional checks alone. Continuous battery monitoring provides the visibility needed to detect hidden degradation, track trends, and support more reliable maintenance decisions.
Alpais Battery Monitoring System helps data center operators monitor UPS battery systems at cell, string, and room level with structured data, alarms, and integration options.
Need a battery monitoring solution for your data center UPS system?
Contact Alpais to discuss your battery type, system size, communication requirements, and monitoring architecture.
