Protecting Network Uptime Through Continuous Battery Condition Monitoring
Telecommunication networks depend on continuous power availability. Base stations, transmission sites, data communication nodes, switching centers, and remote telecom shelters are expected to operate without interruption, even during grid disturbances or unstable power conditions.
In these environments, battery systems are not secondary components. They are a critical part of network continuity. When the main power source fails, batteries must support telecom equipment immediately and reliably.
What this whitepaper covers
- Why battery reliability matters in telecommunications infrastructure
- Hidden risks in telecom battery backup systems
- Why periodic manual battery checks are not enough for remote sites
- Key parameters for telecom battery monitoring
- 48V DC telecom battery monitoring considerations

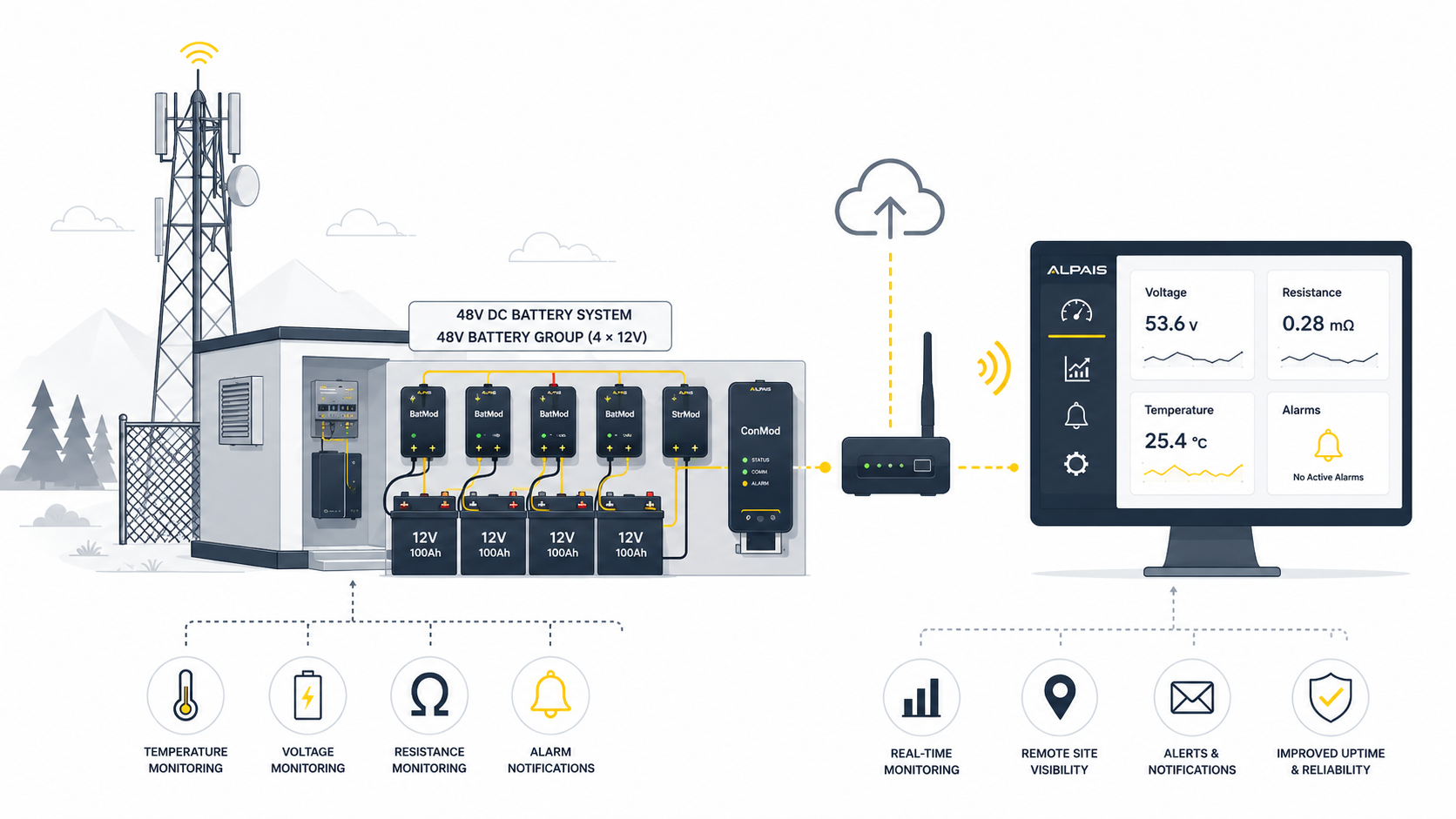

- Remote monitoring for distributed telecom sites
- Selection checklist for telecom battery monitoring systems
1. Introduction
Battery problems often develop silently. A weak battery, high internal resistance, temperature imbalance, loose connection, abnormal discharge behavior, or string-level fault may remain unnoticed until backup power is actually needed.
This creates a serious risk for telecom operators, service providers, infrastructure companies, and maintenance teams. For this reason, telecommunications battery monitoring is becoming an essential part of telecom power infrastructure.
Instead of relying only on periodic manual checks, telecom sites can be monitored continuously at cell, battery, string, and site level.
2. Why Battery Reliability Matters in Telecommunications
Telecom infrastructure is distributed, critical, and often difficult to access. Unlike centralized facilities, telecom networks may include hundreds or thousands of sites across different locations, climates, and operating conditions.
Typical telecom battery applications include:
- Base transceiver stations
- Remote telecom shelters
- Transmission and switching sites
- Fiber optic communication nodes
- Microwave relay stations
- Central offices
- 48V DC power systems
- UPS-supported telecom rooms
- Off-grid or hybrid-powered telecom sites
In these applications, battery failure can lead to service interruption, emergency maintenance visits, customer complaints, network instability, and operational cost increases.
A telecom battery system may appear healthy during normal operation because it remains on float charge most of the time. However, standby operation can hide degradation. A battery may show acceptable voltage while its internal condition has already weakened.
This is why voltage measurement alone is not enough for effective telecom battery backup monitoring.
3. The Hidden Risks in Telecom Battery Systems
Telecom battery systems are exposed to several risk factors that can reduce backup reliability over time. These risks may not be visible from total string voltage alone.
Common risks include:
- Individual battery degradation
- Internal resistance increase
- Temperature problems
- Loose or high-resistance connections
- Voltage imbalance between batteries
- Remote site visibility limitations
- Limited historical condition data
Individual Battery Degradation
In a battery string, one weak battery can affect the performance of the entire backup system. Even if the total string voltage appears normal, one cell or battery may already be deteriorating.
Internal Resistance Increase
Internal resistance is one of the key indicators of battery condition. As batteries age or degrade, internal resistance may increase. This can reduce the battery’s ability to deliver current during discharge.
Temperature Problems
Battery temperature directly affects performance, aging, and safety. Telecom sites may operate in harsh outdoor environments, shelters, cabinets, or rooms with limited cooling.

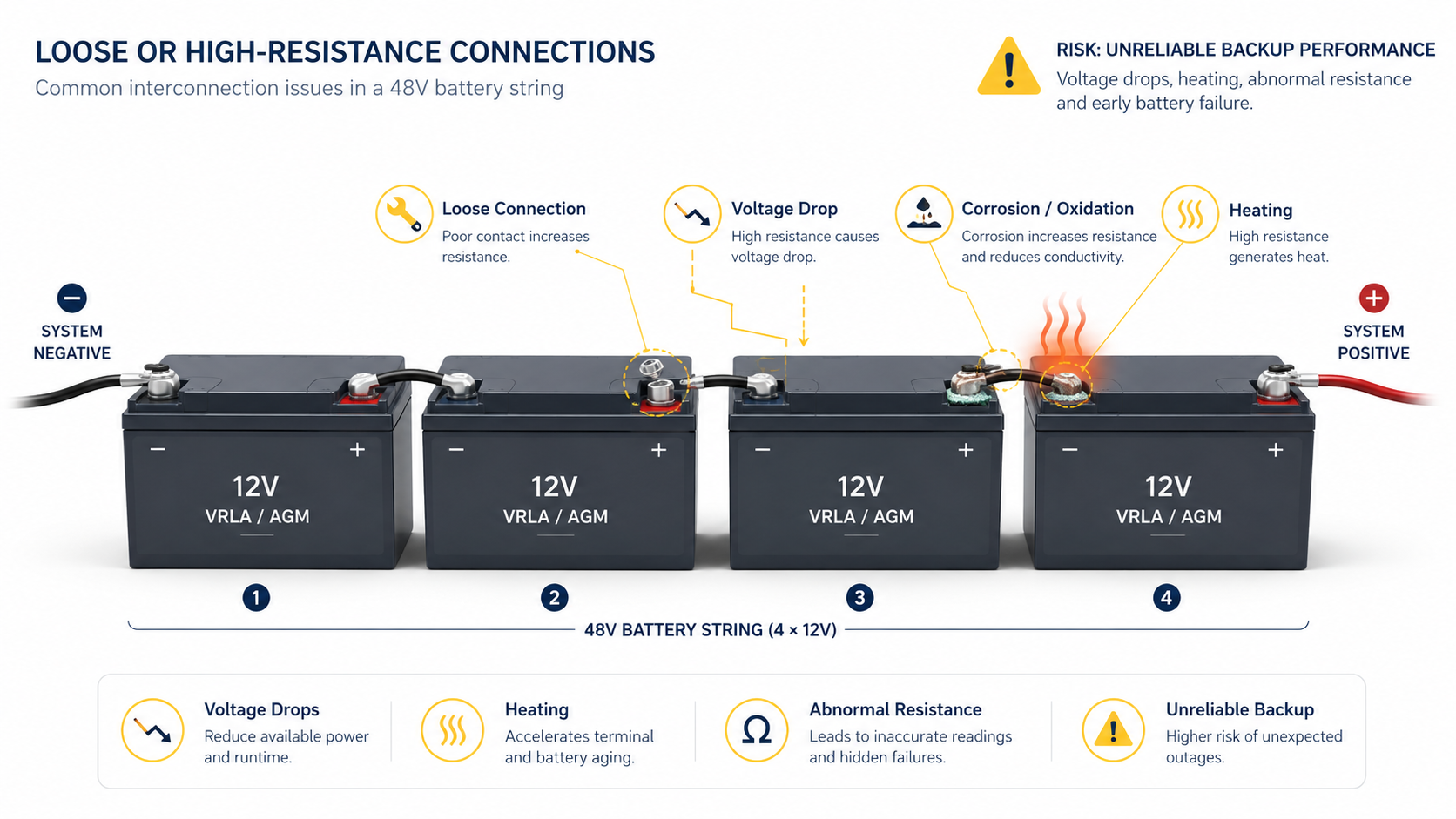

Loose or High-Resistance Connections
Loose terminals, oxidized contacts, or high-resistance battery interconnections may cause voltage drops, heating, abnormal resistance trends, and unreliable backup performance. Continuous battery monitoring can help detect these symptoms earlier by tracking voltage, internal resistance, and temperature behavior.

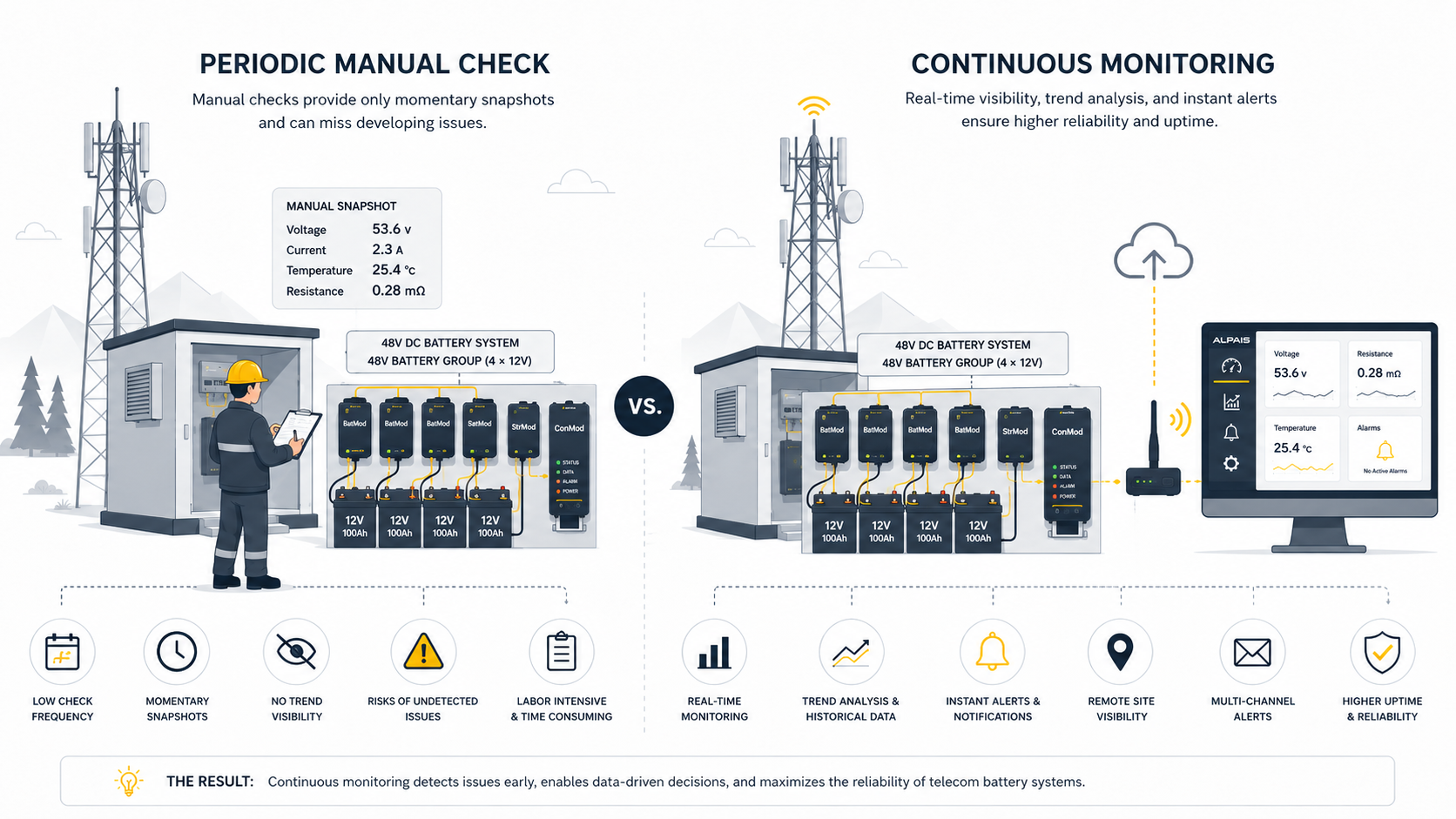

4. Why Periodic Battery Checks Are Not Enough
Manual battery inspections are useful, but they provide only a snapshot of battery condition at a specific time.
A periodic maintenance visit may confirm that batteries are acceptable on the inspection day. However, it may not detect what happens between visits, especially in unmanned telecom shelters and remote telecom sites.
Problems may develop between maintenance visits, such as:
- A sudden temperature rise
- A developing internal resistance increase
- A loose terminal connection
- A weak battery under discharge
- A site-level power event
- A repeated charge or discharge cycle
- A battery voltage deviation
- A communication or power supply issue
For telecom networks, where uptime expectations are high and sites are geographically distributed, this approach creates visibility gaps.
A telecom battery monitoring system helps close these gaps by providing continuous data, alarms, historical trends, and remote access.
5. What Should Be Monitored in Telecom Battery Systems?
An effective telecommunications battery monitoring solution should monitor both individual batteries and the complete string. The objective is not only to collect values, but to understand actual backup readiness.
Key parameters include:
- Individual battery voltage
- Internal resistance
- Battery temperature
- String voltage
- String current
- Ambient temperature and humidity
- Alarm history
- Charge and discharge records
- Optional site-level sensors
Individual Battery Voltage
Battery voltage monitoring helps detect abnormal voltage deviation, imbalance, overvoltage, undervoltage, and abnormal charge or discharge behavior.
Internal Resistance
Internal resistance monitoring supports early detection of battery degradation and connection-related problems. It gives maintenance teams better insight than voltage-only monitoring.
Battery Temperature
Battery temperature monitoring helps identify overheating, thermal imbalance, and environmental stress around individual batteries.
String Voltage and Current
String voltage provides a complete view of the battery bank, while current monitoring helps track charge and discharge events during grid failure or power instability.

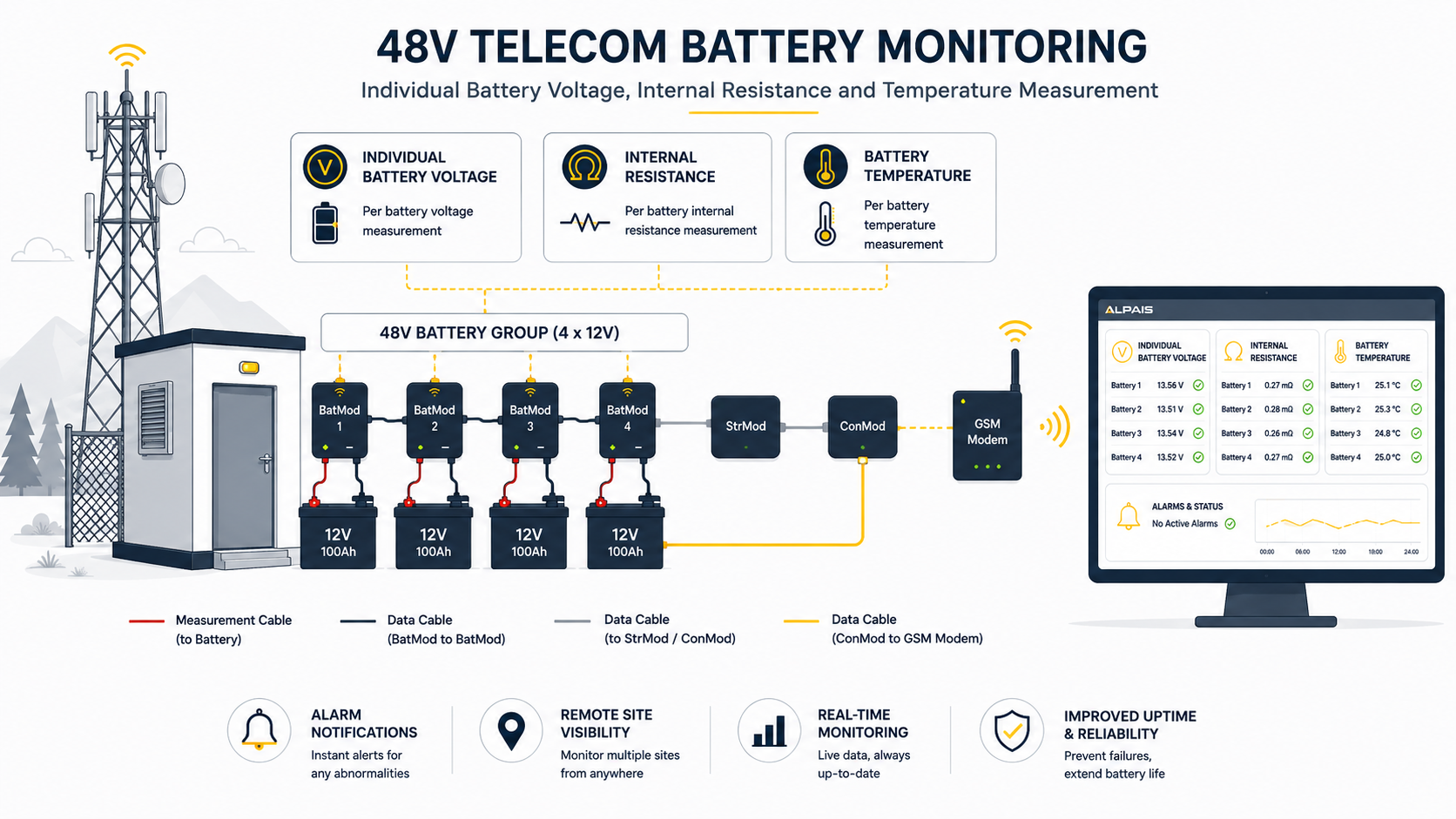

6. Telecom Battery Monitoring for 48V DC Power Systems
Many telecom sites use 48V DC power systems. These systems may include battery strings made of 2V cells, 12V batteries, or other configurations depending on the site design.
In a 48V telecom battery system, a total voltage reading may not be enough to understand the condition of each battery. One weak battery can remain hidden inside the string while the overall DC bus voltage still appears acceptable.
For this reason, 48V battery monitoring should include individual battery voltage, internal resistance, and temperature measurements. This provides a more detailed view of actual backup readiness.
48V telecom battery monitoring supports:
- Weak battery identification inside the string
- Voltage imbalance detection
- Internal resistance trend monitoring
- Battery temperature observation
- Charge and discharge event visibility
- Remote battery status review for unmanned sites
7. Benefits of Telecommunications Battery Monitoring
Continuous battery monitoring helps telecom operators identify battery problems before they lead to backup failure. This supports network availability and reduces outage risk.
Main benefits include:
- Better network uptime protection
- Remote visibility across multiple telecom sites
- Early fault detection
- Reduced unnecessary maintenance visits
- Condition-based maintenance planning
- Improved battery life management
- Better reporting and documentation

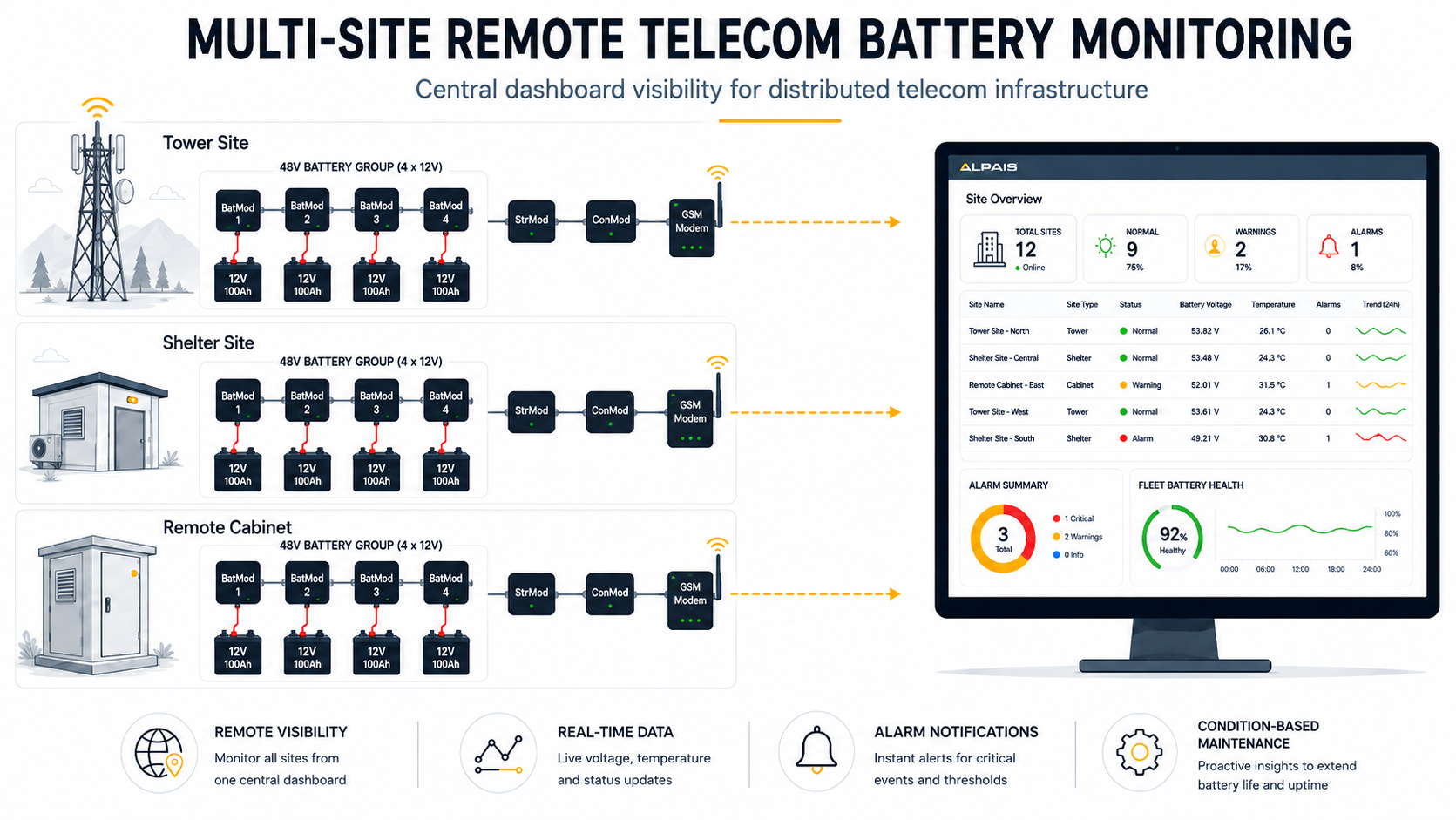

Remote Visibility Across Multiple Sites
Telecom networks often include many distributed locations. Remote battery monitoring allows maintenance teams to review battery condition without visiting every site physically.
Reduced Maintenance Costs
Remote monitoring can reduce unnecessary site visits and help maintenance teams focus on the sites that actually require attention.
Improved Battery Life Management
Battery aging is affected by temperature, charge conditions, discharge cycles, and operating environment. Historical monitoring data helps teams understand battery behavior over time.
8. Application Areas
Telecommunications battery monitoring can be used in many types of telecom infrastructure. Each site may have different battery capacity, voltage level, environmental condition, and communication requirement.
Application areas include:
- Mobile network base stations
- Telecom shelters
- Fiber network nodes
- Central offices
- Transmission sites
- Microwave communication sites
- Remote power cabinets
- UPS-supported telecom rooms
- Industrial communication networks
- Utility communication systems
A flexible battery monitoring architecture helps adapt the system to different telecom applications, from compact 48V DC systems to larger battery rooms and multi-site installations.
9. Choosing a Telecom Battery Monitoring System
When selecting a battery monitoring system for telecom applications, the solution should provide clear visibility into both individual battery condition and complete string performance.
Selection checklist:
- Does the system monitor individual batteries?
- Does it measure internal resistance?
- Does it monitor battery temperature?
- Can it monitor string voltage and current?
- Does it support remote access for distributed sites?
- Does it provide alarm notifications?
- Does it include historical data and reporting?
- Can it support multi-site monitoring?
- Does it support communication protocol integration?
- Is it suitable for the battery type used on site?
The system should not only collect data. It should help maintenance teams understand which batteries, strings, or sites require attention.
10. How Alpais Supports Telecom Battery Monitoring
Alpais Battery Monitoring System is designed to monitor battery systems continuously at battery, string, and site level.
For telecom applications, Alpais can monitor critical battery parameters such as individual battery voltage, internal resistance, battery temperature, string voltage, string current, and ambient conditions.
With remote monitoring, alarm management, reporting, and communication protocol support, Alpais helps telecom operators and infrastructure teams improve visibility over their backup battery systems.
Alpais can support telecom applications with:
- Battery-level voltage monitoring
- Internal resistance monitoring
- Battery temperature monitoring
- String voltage and current monitoring
- Remote monitoring and alarm management
- Historical data and reporting
- Protocol integration options including Modbus and SNMP
- Flexible architecture for telecom rooms, shelters, and DC power systems
11. Frequently Asked Questions
What is telecommunications battery monitoring?
Telecommunications battery monitoring is the continuous monitoring of battery systems used in telecom infrastructure such as base stations, telecom shelters, central offices, DC power systems, and UPS-supported communication sites.
Why is battery monitoring important for telecom sites?
Battery monitoring is important because telecom sites depend on backup batteries during power interruptions. A weak or degraded battery can reduce backup time and create network outage risk.
Is voltage monitoring enough for telecom batteries?
No. Voltage monitoring alone may not detect internal degradation. Internal resistance, battery temperature, string voltage, current, and historical trends should also be monitored.
What does a telecom battery monitoring system measure?
A telecom battery monitoring system can measure individual battery voltage, internal resistance, battery temperature, string voltage, string current, ambient temperature, humidity, and alarm conditions.
Can battery monitoring be used for 48V telecom systems?
Yes. Battery monitoring can be used for 48V telecom DC power systems. Individual battery-level monitoring helps detect weak batteries that may not be visible from total string voltage alone.
How does remote battery monitoring help telecom operators?
Remote battery monitoring helps telecom operators monitor distributed sites, reduce unnecessary maintenance visits, detect faults earlier, and prioritize service based on actual battery condition.
12. Conclusion
Telecommunication networks require reliable backup power. However, battery reliability cannot be fully managed through periodic checks or total voltage readings alone.
Battery failures often develop gradually and silently. By the time a weak battery is noticed during a real power outage, it may already be too late.
Telecommunications battery monitoring gives operators continuous visibility into battery condition, helping detect weak batteries, abnormal resistance, temperature problems, string imbalance, and site-level risks earlier.
Need a battery monitoring solution for your telecom sites?
Contact Alpais to discuss your telecom battery system, 48V DC power architecture, site quantity, communication requirements, and remote monitoring needs.
